Description

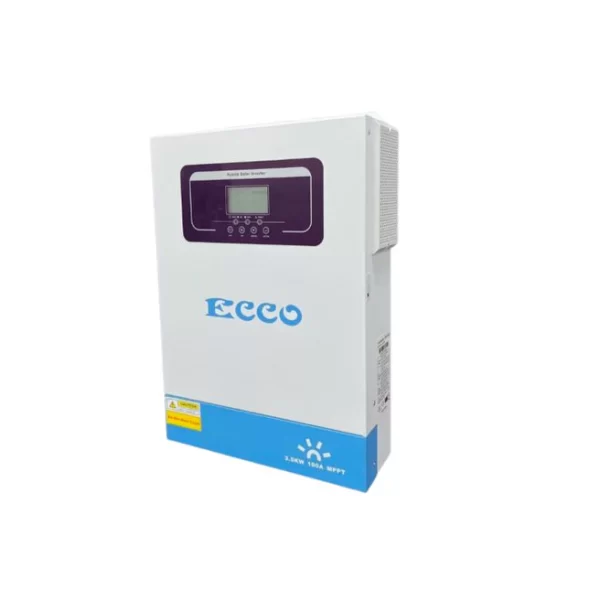

High Voltage VDC500V
3.5KVA/3500W 100A Pure Sine Wave Solar Inverter
Features
– Pure Sine Wave Solar Inverter
– Output Power Factor 1
– High PV Input Voltage Range (120VDC – 500VDC)
– Built-in 100A MPPT Solar Controller
– Supports Multiple Output Priority: UTL, SOL, SBU, SUB
– Parallel Operation with Up to 12 units (Parallel Version)
– Supports Parallel Operation in Single Phase/ 3 Phase (Parallel Version)
– Supports Wireless Parallel, Without Extra Sharing Current Cable
– RS485 Communication for BMS
– Wifi Monitoring
– Battery Equalization Function to Optimise Battery Performance and Extended Lifecycle
Specifications:-
Inverter Mode
– Rated Power: 3500VA / 3500W
– DC Input: 24VDC, 158A
– AC Output: 230VAC, 50/60Hz, 23.5A
AC Charger Mode
– AC Input: 230VAC, 50/60Hz, 23.5A
– DC Output: 27VDC
– Max. Charge Current(AC): 60A Default 30A
– Max. Charge Current(PV+AC): 100A
– AC Output: 230VAC, 50/60Hz, 15.2A
Solar Charge Mode
– Max. PV Array Power: 4000W
– Min. Solar Voltage: 120VDC
– Max. Solar Voltage (VOC): 500VDC
– Max. MPPT Charge Current: 100A
Ingress Protection: IP21 (Indoor Use)
Dimensions ; 38 x 55 x 20 cm
Weight : 9.65kg
